Dewatering screen
Key words:
Dewatering screen
Classification:
- Details
-
Product Overview

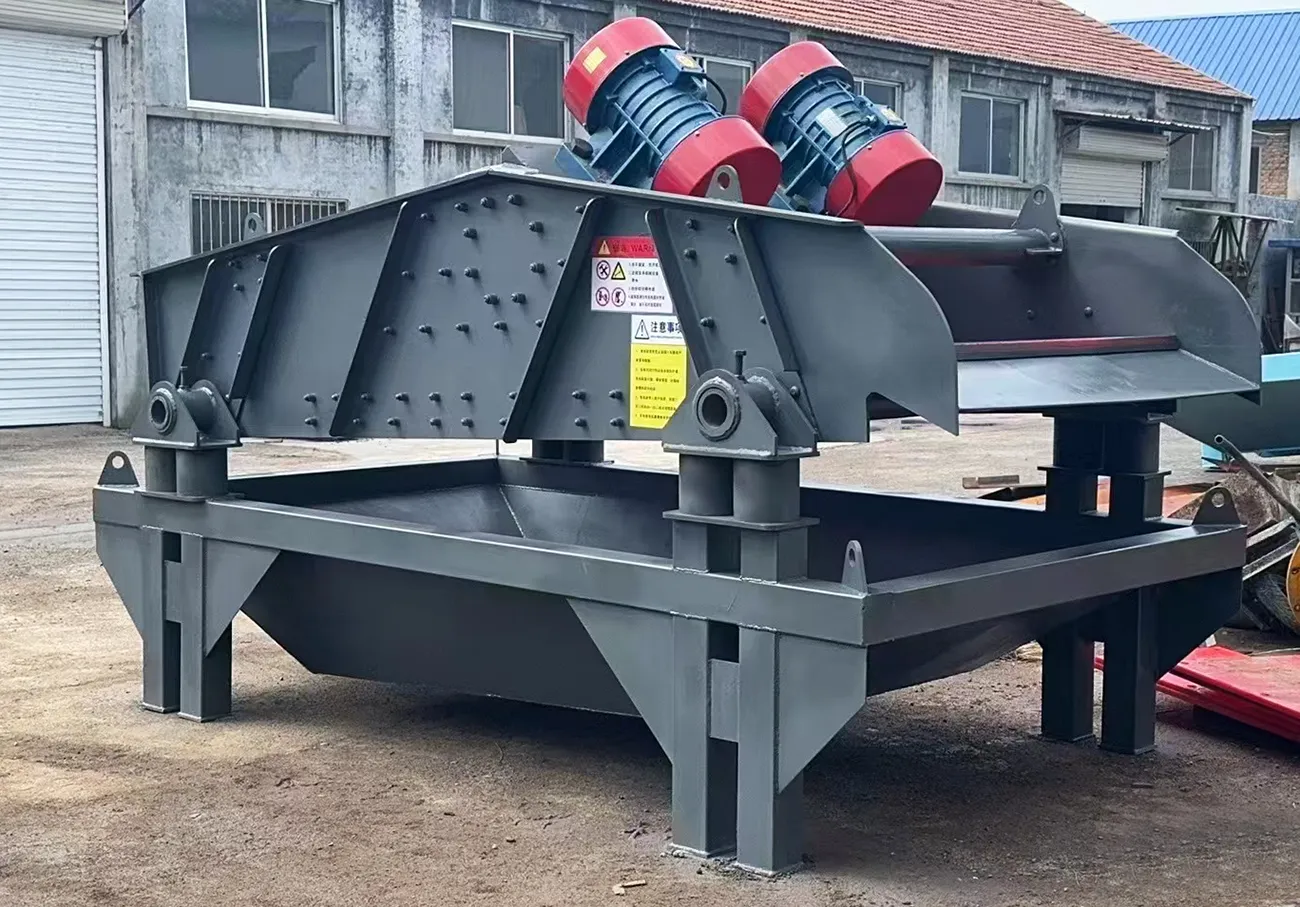

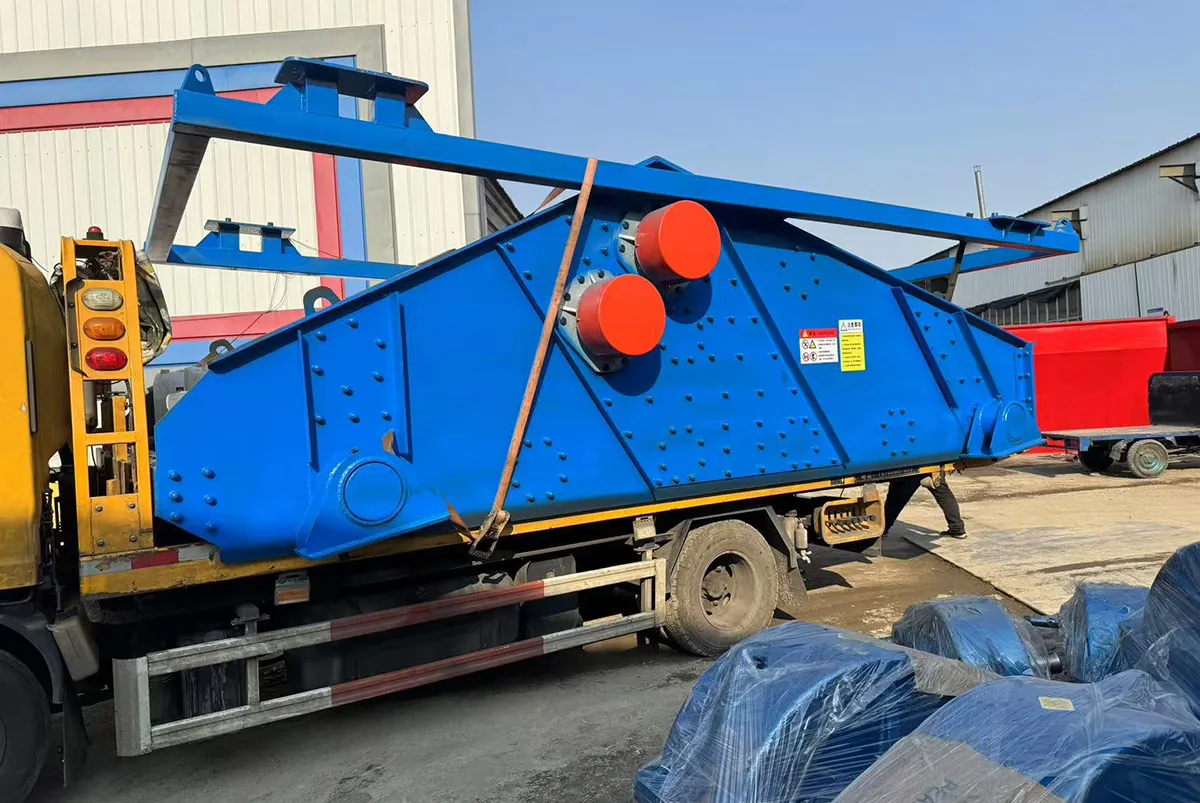

Dewatering screen, the main function is dewatering, desliming, demixing, can be used for sand washing in sand and gravel plant, coal slurry recovery in coal processing plant, tailings dry discharge in mineral processing plant, etc., so it's also called sand and gravel dewatering screen, mining dewatering screen, coal slurry dewatering screen, tailings dewatering screen and so on.
Performance Advantages
1, the vibration motor of the dewatering sieve, easy to replace, the base rubber spring is used to dampen the vibration, so that the amplitude is not too large, slow vibration, can be stripped clean.
2, can be customized according to the output and moisture content, the body of the side plate has a reinforcing plate, the bottom is equipped with support, the bottom of the fight with the crossbar, the outlet plus a triangular steel plate support, the plate is thick.
3, Vibrating motor fixed with high-strength bolts, the bottom spring is rubber spring, the quality of the spring will affect the life of the vibrating motor. The screen plate is fixed with high density, and there are reinforcement bars in the screen plate.
4, the welder will be strictly no welding holes after welding, the bottom with channel steel support.
5, In addition, the sieve hole can be adjusted according to the need, the equipment noise is small, and the dewatering effect is good.
6, before delivery, the staff will debug it, vibration motor is normal, whether the exciter is good operation, to ensure that the customer to ensure the quality of the factory products.
7, the added value of the dewatering screen: for products with low mud content, you can also use the dewatering screen directly, without the need to use the sand washing machine, which saves the customer's cost, can achieve the same effect.
Product Features
1. Low noise, easy maintenance.
2. Reasonable structure, sturdy and durable.
3. good dehydration effect, safe and reliable.
4. large screening capacity and high screening efficiency.
5. light weight, easy to disassemble, easy to maintain, no sudden segment spring.
Technical Parameters
Model Power (Kw) Processing capacity (T/h) 1020 0.75*2 20-30 1224 1.5*2 30-50 1530 3.0*2 50-70 1830 3.7*2 70-80 2040 3.7*2 80-100 2445 15*2 100-170 2450 15*2 100-160 3050 22*2 150-220 3060 22*2 150-240
