PF series impact crusher
Key words:
PF series impact crusher
Classification:
- Details
-
PF series impact crusher
PF series impact crusher utilizes impact energy to crush materials. The rotor rotates at a high speed driven by the electric motor, and the materials entering from the feed opening collide with the plate hammers on the rotor, and are crushed by the high-speed impact of the plate hammers; the crushed materials are counter-attacked on the liner plate to be crushed again; and are discharged from the discharge opening. It is used in metallurgy, mining, cement, chemical industry, refractory materials and ceramics and other industrial sectors, as well as highway construction, water conservancy projects, building rubble, sand processing and other fields.
Product Advantage
1、Counterattack plate and hammer gap can be easily adjusted, effectively control the size of the discharge, good particle shape.
2、Large feed opening, high crushing cavity, high hardness of materials, less stone powder.
3、Using high chrome plate hammer, anti-impact, anti-wear, long service life.
4、It can crush many kinds of materials with wide range of application.

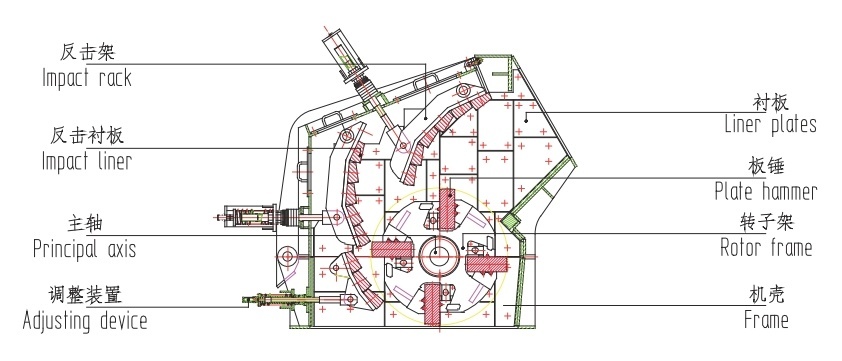

Structure Composition
Technical Parameter
