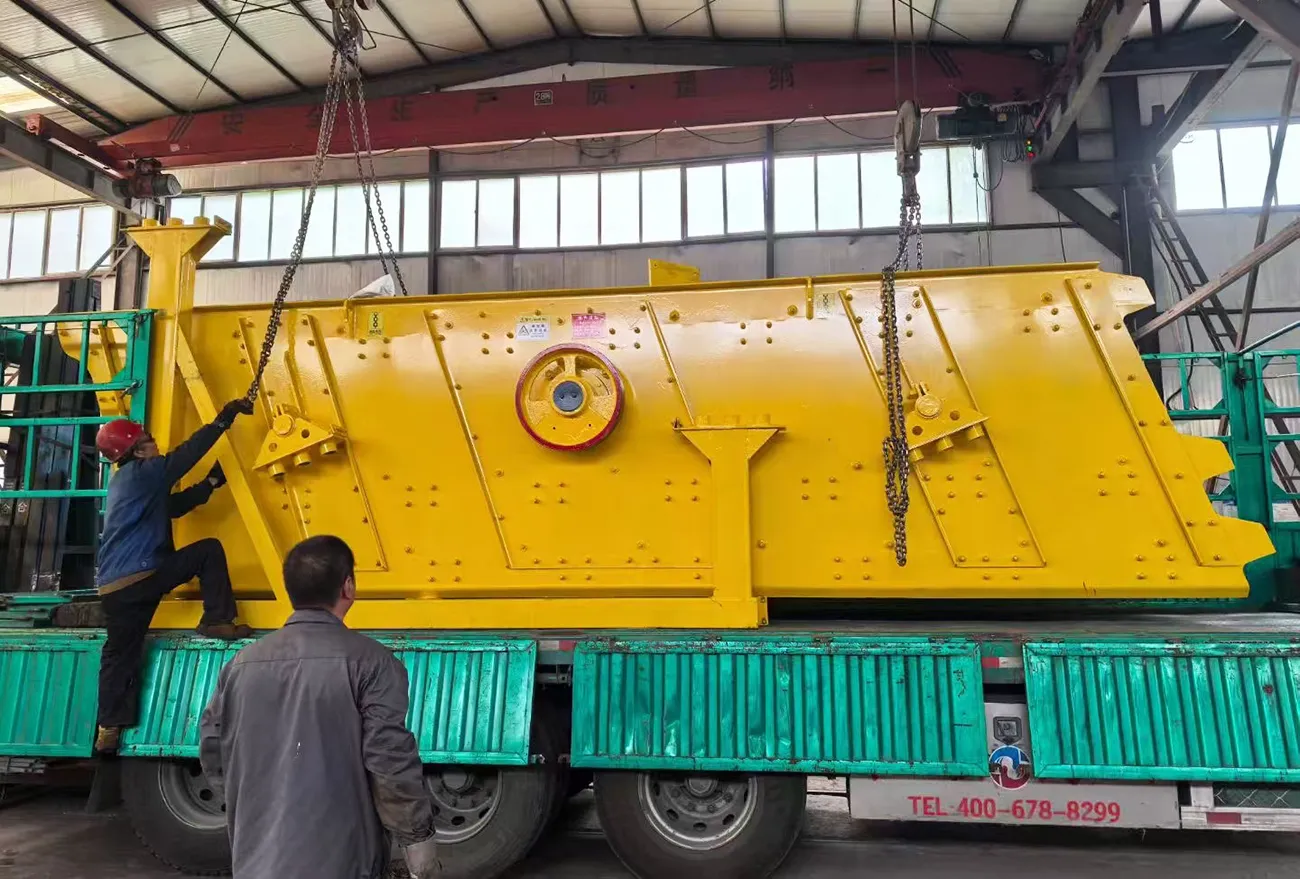

YZS series circular vibrating screen
Key words:
YZS series circular vibrating screen
Classification:
- Details
-
Product Overview
Mining vibrating screen (round mining vibrating screen) does circular movement, is a kind of multi-layer number, high efficiency new mining vibrating screen. Mining vibrating screen adopts cylinder type eccentric shaft exciter and partial block to adjust the amplitude, the material screen flow line is long, screening specifications, with reliable structure, strong vibration force, high screening efficiency, low vibration noise, durable, convenient maintenance, safe use and so on.
Mining vibrating screen structure: mainly consists of screen box, exciter, suspension (or support) device and electric motor. The motor through the triangle belt, driven by the shaker spindle rotary, due to the unbalanced weight on the shaker centrifugal inertia force, so that the screen box was vibration. Changing the eccentric weight of the shaker, different amplitudes can be obtained.
Main Advantages
1. Due to the strong vibration of the screen box, it reduces the phenomenon of material blocking the sieve holes, so that the sieve has high screening efficiency and productivity.
2. simple construction, easy to dismantle and change the screen surface.
3. less power consumption for screening each ton of material.
Technical Parameters
Product Name Model Specification Layers of sieve surface Hole Size Maximum feed size Handling capacity Motor power YZS series circular vibrating screen YZS1860 6000*1800 2 3-100 400 65-550 22 3 3-100 400 65-550 22 4 3-100 400 65-550 30 YZS2160 6000*2100 2 3-100 400 81-720 22 3 3-100 400 81-720 30 4 3-100 400 81-720 30 YZS2460 2400 2 3-150 400 100-810 30 3 3-150 400 100-810 37 4 3-150 400 100-810 37 YZS3080 8000*3000 3/4 3-200 400 200-900 45
